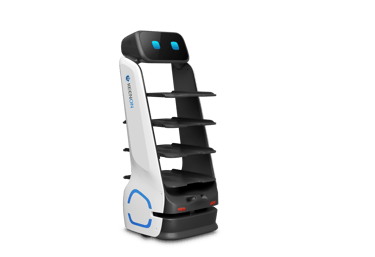

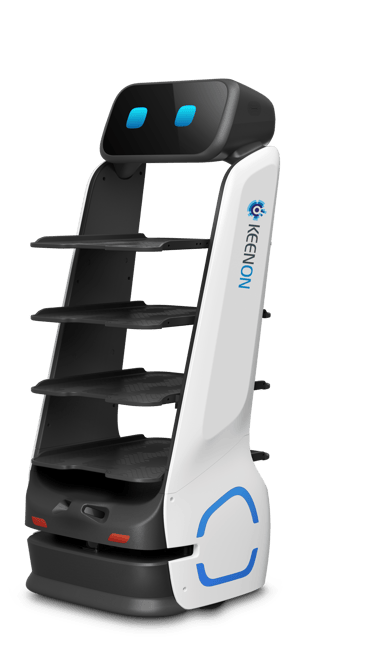

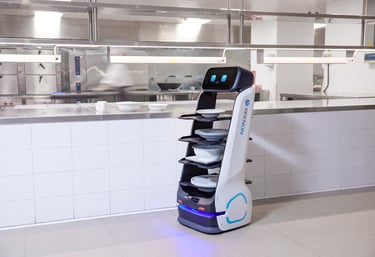

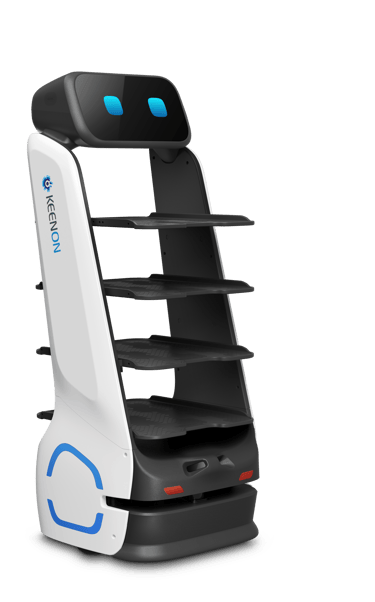

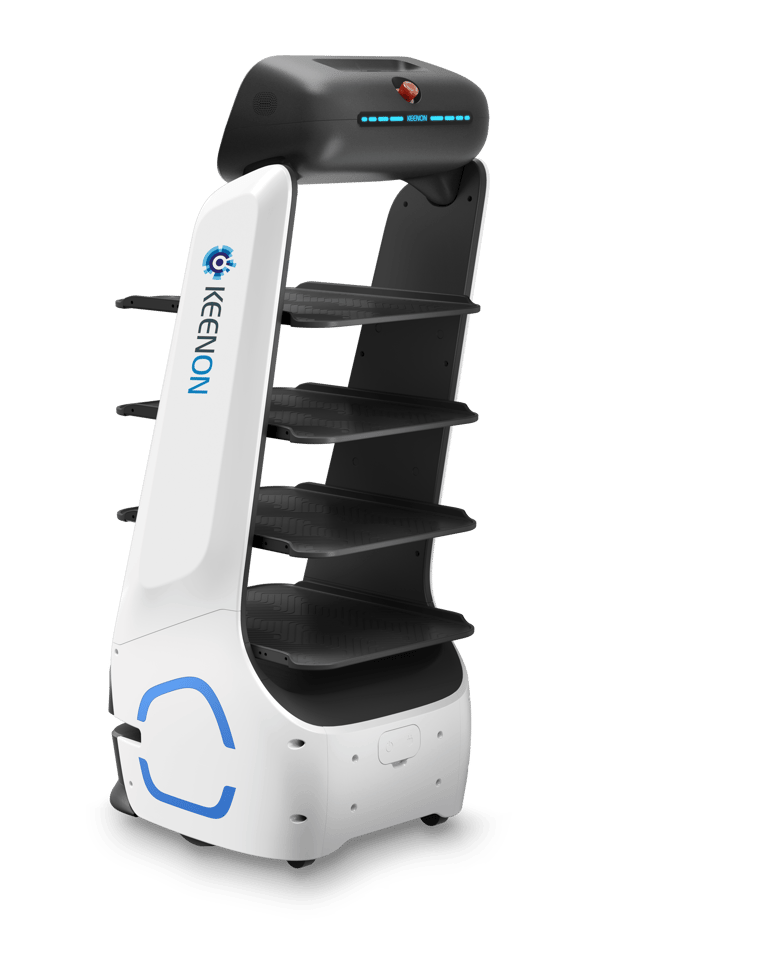

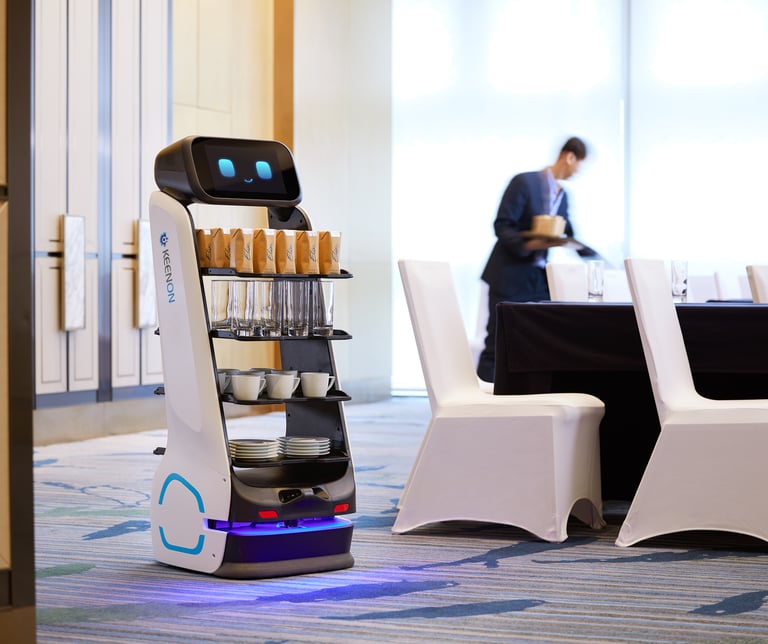

High-Capacity Delivery System With four adjustable trays carrying up to 40 kg total (10 kg per tray), the T9 efficiently serves multiple tables or large groups in one trip. Its spacious layout suits stacked dishes, trays, and catering boxes.

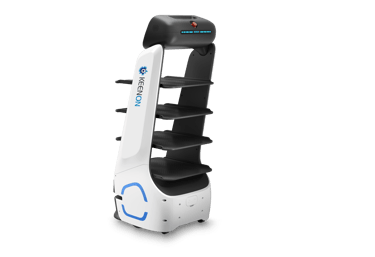

DINERBOT T9 Feature Highlight

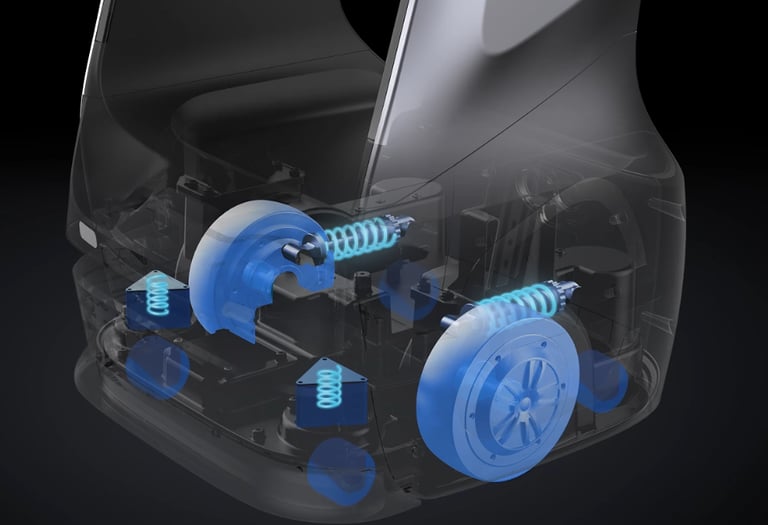

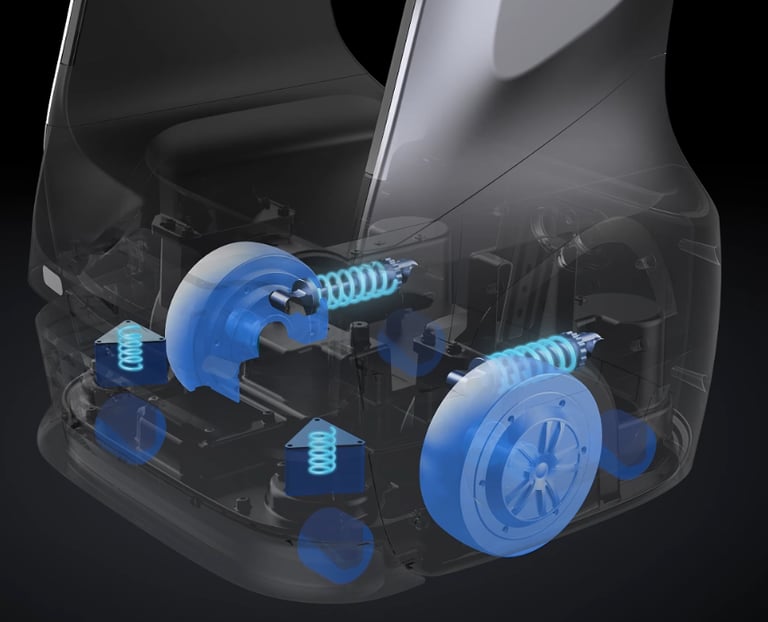

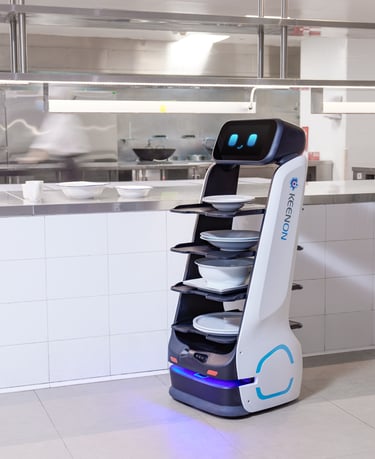

Smooth & Stable Performance The T9’s multi-joint shock-absorbing chassis and refined PID control system keep acceleration, braking, and turning steady. Meals stay stable and spill-free—even on uneven floors or gentle slopes.

Interactive Guest Experience An 11.6-inch HD touchscreen and expressive LED face display create a friendly, approachable service experience.
Voice prompts and visual cues make it easy for guests to recognize and retrieve their orders.

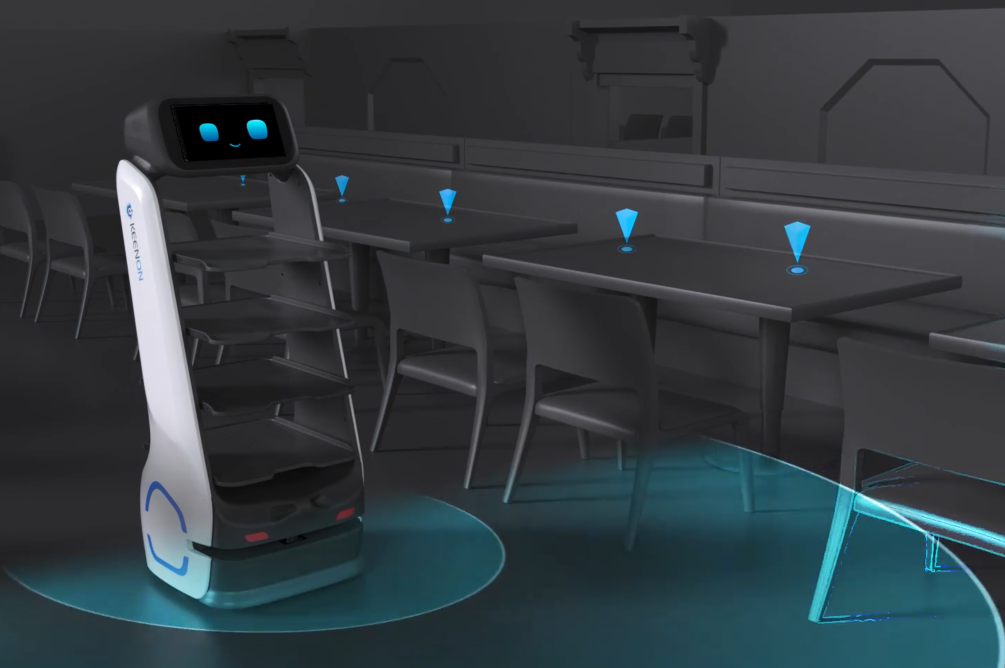

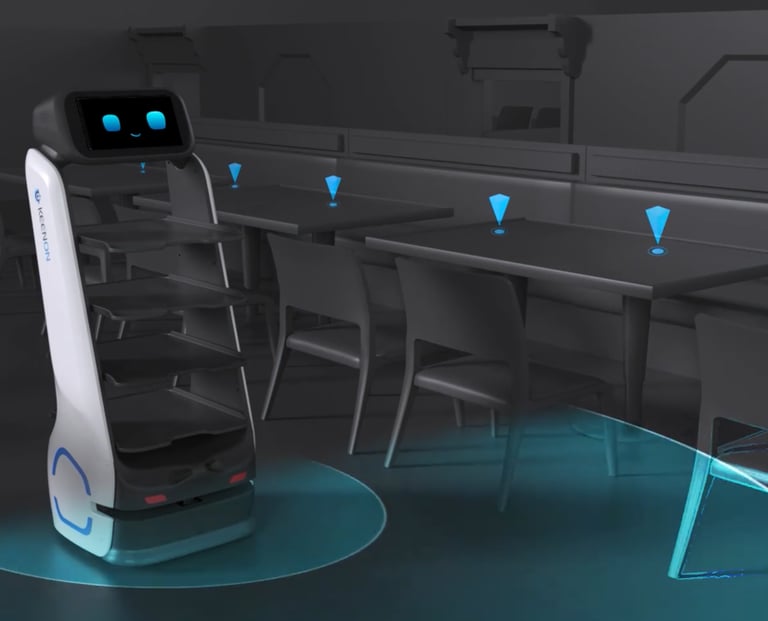

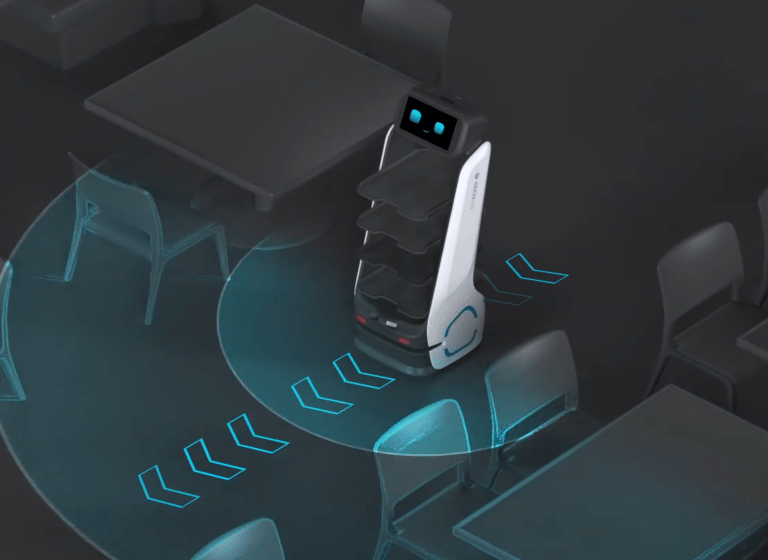

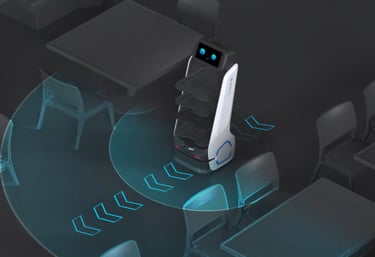

Safe and Reliable Navigation Powered by 3D perception and stereo-vision sensors, the T9 detects people and obstacles in real time. Its intelligent anti-collision and route-planning algorithms ensure smooth movement through crowded restaurants or corridors.

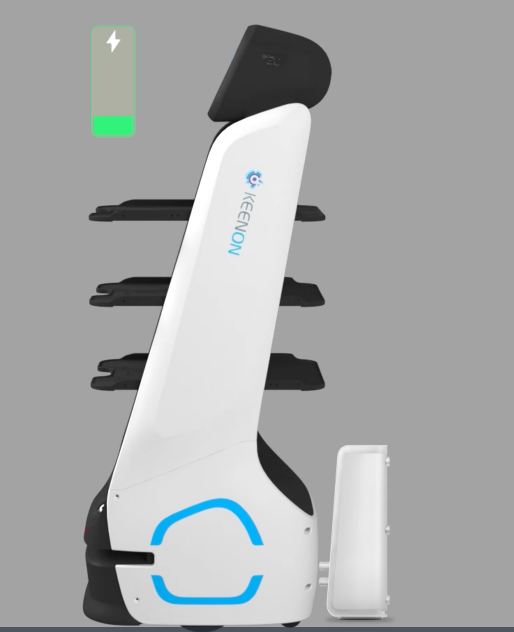

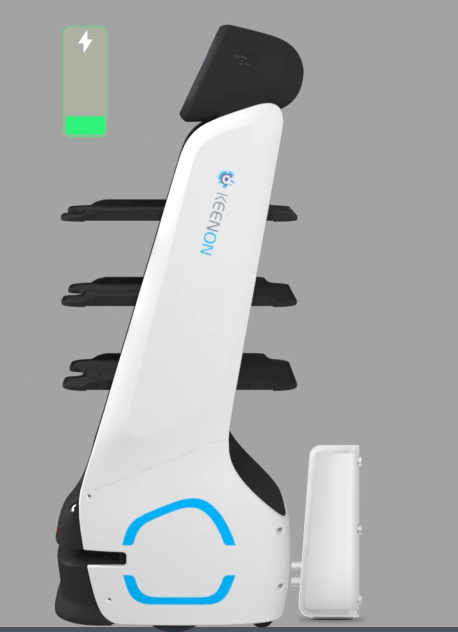

Auto-Charging & Continuous Operation When power runs low, the robot returns automatically to its charging station, staying ready for the next shift. You can schedule charging or service hours based on daily demand for uninterrupted operation.

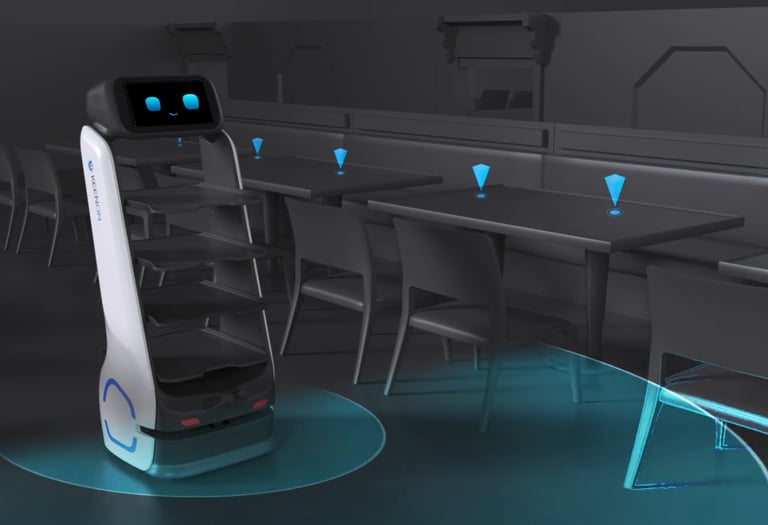

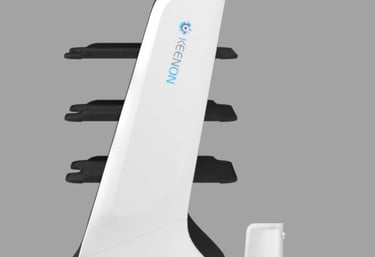

Smart Mapping & Easy Setup The T9 uses LiDAR + V-SLAM navigation to create accurate indoor maps quickly and easily. It recognizes natural features in the environment for reliable localization—no floor stickers required under normal conditions.
Optional reference markers can be added for extra precision in very large or uniform spaces.

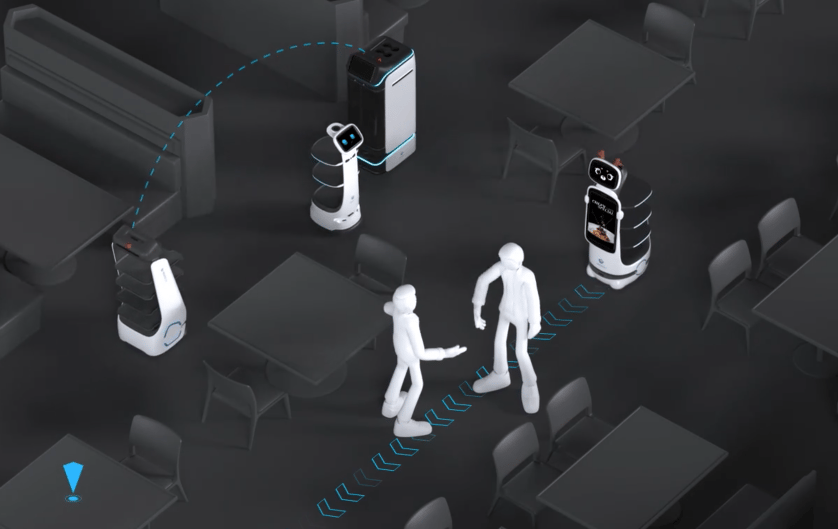

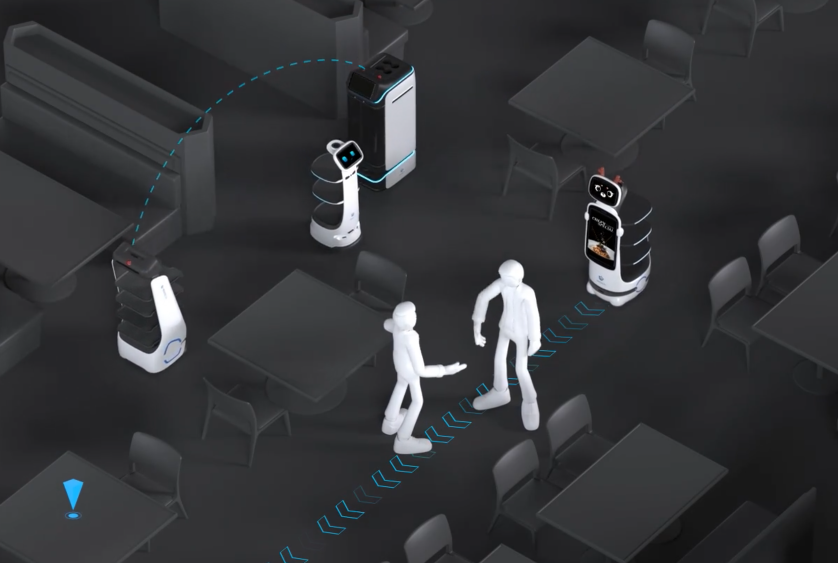

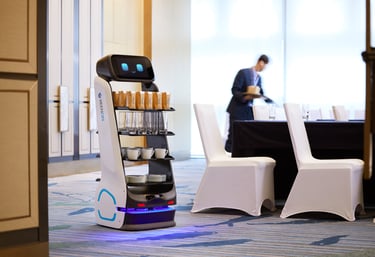

AI Navigation & Multi-Robot Coordination Keenon’s patented AI algorithms optimize route planning, scheduling, and collaboration among multiple robots. Several T9 can work together seamlessly without congestion, maximizing throughput in busy venues.

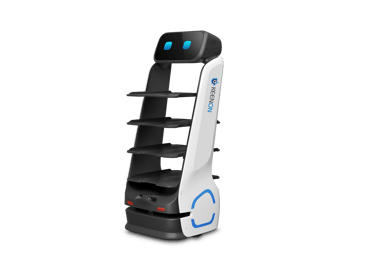

DINERBOT T9 Specifications

Dimensions
50.0 x 52.7 x 126.6 cm

Weight*
63 kg

Layer Size
49.0 x 40.4 cm

Total Load Capacity
40 kg

Minimum Passage Width
70cm

Moving Speed
0.1-1.0 m/s

Slope Angle
5°

Battery Life**
Up to 18 h

Charging Time***
4 h

*Charging pile is not included.

**All battery claims depend on many factors; actual results will vary. Battery has limited recharge cycles and may eventually need to be replaced. Battery life and charge cycles vary by use and settings.

***The charging time stated refers to the duration required for charging from 15% to 100% battery capacity, using either a recharger or charging pile, with the robot powered on. Do not attempt to charge a wet Robot.
